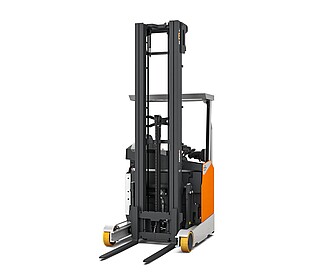

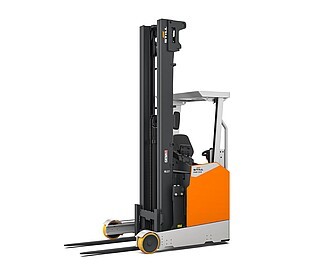

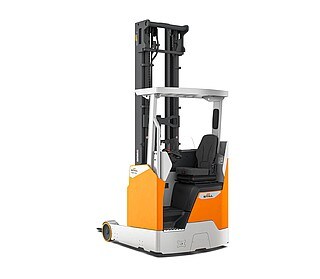

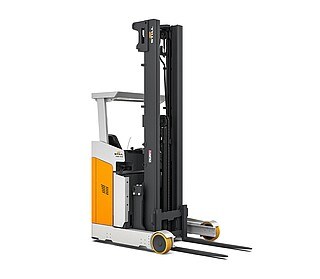

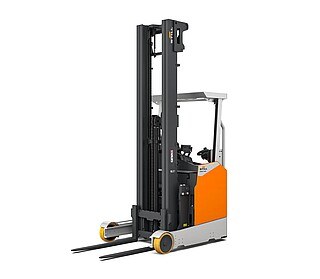

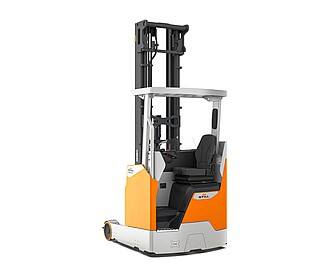

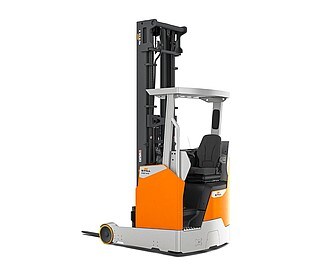

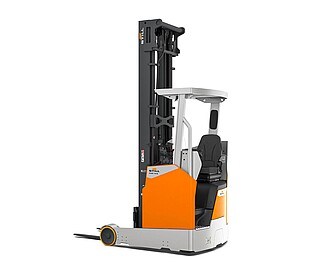

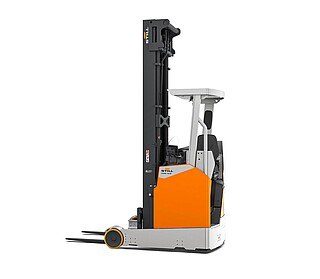

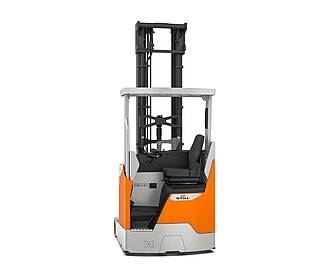

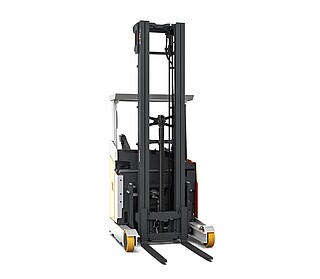

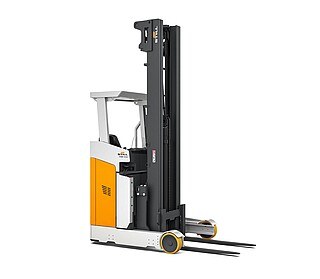

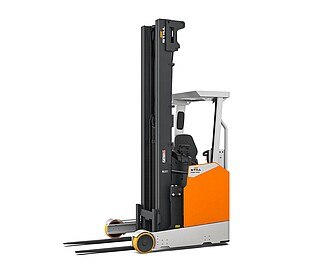

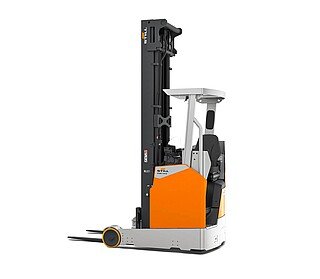

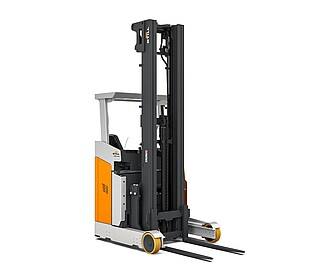

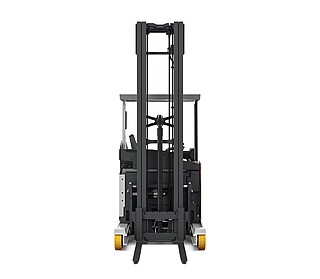

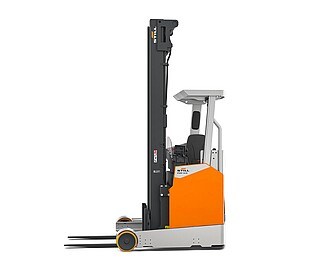

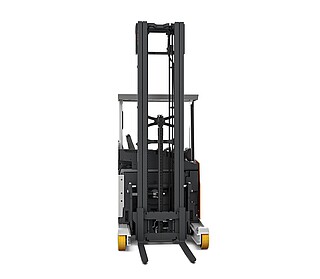

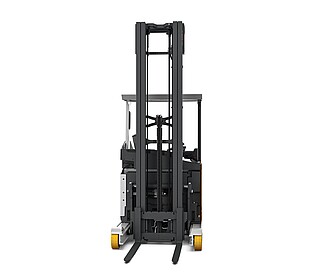

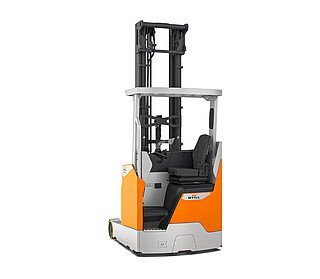

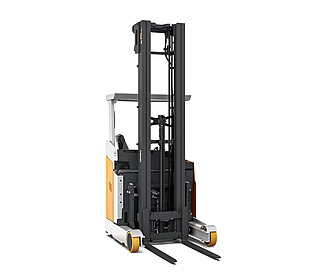

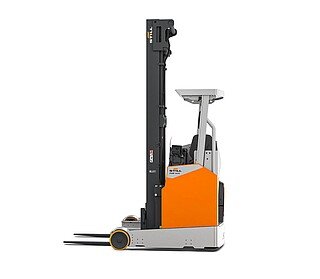

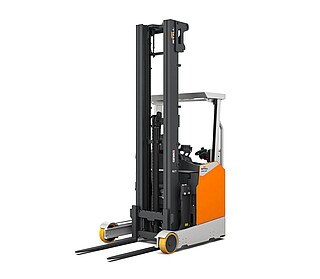

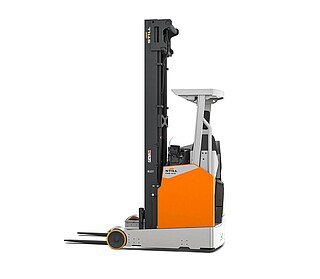

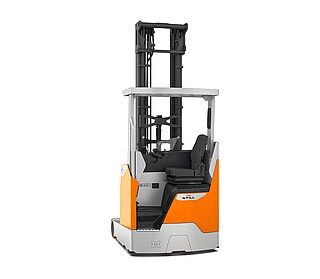

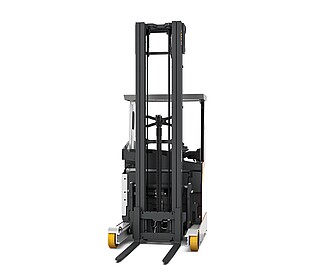

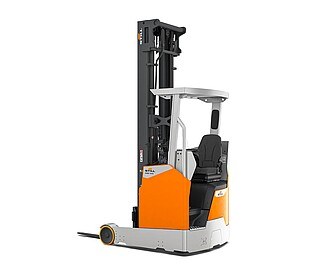

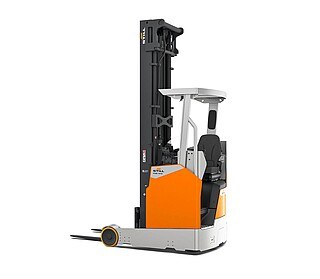

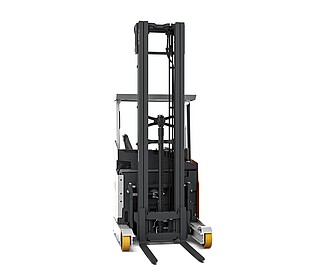

Reach truck FXR 14C-16C

Reach high. Work smart.

Грузоподъемность 1600 kg
Высота подъема вил 9020 mm
Cкорость 10 km/h

Move a lot of goods within a small space and a short period of time. That is the motto of the FXR 14C-16C. And rightly so. The compact reach truck ensures efficient process optimisation and high-density storage at heights of up to nine metres in one or two-shift operation. Its compact dimensions and reduced working aisle width mean that the FXR 14C-16C is also a class act in small warehouses and narrow aisles. Standard safety systems, such as Curve Speed Control and the driving speed limitation function in main lift mode, also ensure maximum safety – even for users with little experience. And last but not least, its integrated lithium-ion battery with quick-charging access means that the FXR 14C-16C is always ready for use when you need it.

All this makes the smart warehouse assistant the ideal complement to the FM-X, which is designed for demanding applications and rack heights of up to 14 metres. The more compact FXR 14C-16C, on the other hand, is the perfect, economically attractive choice if you are looking for a highly efficient and safe solution for medium-duty applications and a lower frequency of use, for example in the wholesale and retail trade or in logistics companies.

Optimised efficiency for daily operation with smart variants and assistance functions
Compact on the outside, powerful on the inside – ready for use in the tightest of spaces
Smart investment: premium performance and reliability at an outstanding price/performance ratio

The start of a beautiful friendship

Modest, hard-working and reliable. Not only that, but powerful, efficient and always there when you need them. This is not only every mother-in-law’s dream, but also that of every employee working in a warehouse. Their name: the FXR 14C-16C. Their job: reach truck. Their distinguishing features: slender foot, muscular body, long (9-metre-long) neck. Particular strengths: making your work easier, faster and safer. And before you ask, yes, even in cramped storage environments. We know what counts.

Ready when you are →

No need for kid gloves →

All the nines →

Ready when you are

We could also say: it can always do it. It sounds strange, but it’s true. Because with its powerful lithium-ion battery, the FXR 14C-16C is always ready for action when you need it and can easily cope with one and two-shift operations from a standing start. And if it does run out of energy, the integrated interim charging option and quick-charging access mean that it’s back up and running again in no time at all.

No need for kid gloves

… we’ve made sure of that, by fitting the FXR 14C-16C with a robust steel chassis, secure contour guiding and even smart wheel protection as an option. Meaning that you don’t have to worry about your vehicle – or other vehicles – even on tough days.

All the nines

Whatever you need, the FXR 14C-16C can do it. For example, lifting up to 940 kg to an almost dizzying height of 9 metres. And in many areas of use, that’s all it takes to get the daily work done quickly, efficiently and safely. Only when it comes to speed does the FXR 14C-16C go one further still, just passing the 9 km/h mark with a top speed of 10 km/h.

Smart is the new superlative

Faster, higher and further is old news. The perfect fit is what counts today. And that means a warehouse assistant that can do exactly what you need. No less, but at the same time no more. And one that matches your requirements perfectly. Not your neighbour’s, but yours. We call it smart. To make this work, we have provided the FXR 14C-16C with flexibly configurable variants and assistance functions. Smart, isn’t it?

If you make your bed, you’ve got to lie in it →

If only everything in life were as simple →

So comfortable, it’s like being in your own home →

If you make your bed, you’ve got to lie in it

Okay, so you can’t exactly lie down in the FXR 14C-16C, but you can sit in it really comfortably. And because comfort is different for everyone, your new best friend not only has an ergonomic concept that has been applied throughout, but also several different seat variants to choose from. From mechanical damping to lumbar support and seat heating, you’ll find everything your heart – or in this case, your back – desires. The only thing left for you to do is choose which seat you prefer.

If only everything in life were as simple

… as storage and retrieval with the help of the mechanical lift height sensor in the FXR 14C-16C. Or the way it can be precisely controlled with one hand and the smart Joystick 4Plus. Not to mention how the large touch display with its intuitive menu navigation makes it child’s play to operate all the functions. Or … well, you could just try it out for yourself.

So comfortable, it’s like being in your own home

We want you to feel comfortable during your work. That’s why we’ve equipped the operator’s workplace with (almost) everything you need for it. Mobile phone always within reach and where you can see it? Check! Thanks to the universal smartphone holder. Always fully charged? Check! Via the integrated USB port. Customisation of the most important vehicle settings based on your personal preferences? Check! With the smart touch display, your favourite settings are just a fingertip away. So all that’s missing is … well, what exactly?

As safe as houses

Flexibility may vary from one model to the next, but there’s one thing we do not compromise on: your safety. That’s why our FXR 14C-16C is as safe as houses. Its slim design and compact cab concept ensure that you can access all areas, while smart safety features and assistance systems see to it that you travel safely on all your journeys.

Clear, clearer, clearest →

A guardian angel called CSC →

All good things come from on high →

Clear, clearer, clearest

Attention: A world first! Only STILL offers such a clear view. From the driver’s seat through the mast to the forks. And it does so (almost) completely without annoying hoses in your field of vision. How is that achieved? With the unique STILL sideshift mast. This makes it possible to move the mast sideways by up to 840 mm – and makes your work safer, more efficient and more ergonomic.

A guardian angel called CSC

Go ahead and take the inside lane, where there is a nice tight bend. We get it. After all, time is money and you want to have a bit of fun at work too. To ensure you can still rely on maximum operating safety, we have built two guardian angels into the FXR 14C-16C as standard. The first of these is Curve Speed Control CSC, which ensures that you do not lose control or your load, even around tight bends. And the second is the automatic driving speed limitation function in main lift mode, which uses sensitive sensors to ensure a high level of safety during the storage process. How good is that?!

All good things come from on high

In our case, the good thing is the reliable protection against falling parts or goods provided by our safety roof. Every FXR has one. The only decision you have to make is whether you want our standard version with steel struts or the optional armoured glass roof for an even better view combined with protection against liquids or small falling parts. We can strongly recommend both options. But remember – the glass roof does need to be cleaned regularly, making the steel struts the more cost-effective option.

FXR 14C-16C в деталях

Факторы "Simply Efficient": показатели производительности в качестве меры экономической эффективности.

Просто и легко

Agile manoeuvrability
thanks to its slim dimensions and compact cab design

Precision made easy – with innovative operating elements and mechanical height measurement
for simple and error-free control of the lifting functions

Smart workstation:
intuitive operation and customised setting options via the modern 4.3'' touch display with smartphone holder and USB port

Simply ergonomic – as a result of the customised seat variants and settings
as well as fatigue-free control and operation

Просто мощный

Efficient goods handling
with a residual load capacity of up to 940 kg, a storage height of up to 9 metres and a maximum driving speed of 10 kilometres per hour

Reliable handling and high lifting and lowering speeds
with the powerful and low-maintenance 12 kW lift motor

Non-stop performance:
easily manage one and two-shift operations thanks to battery capacities of up to 21.5 kWh or 414 Ah

Performance you can count on:
the reach truck’s robust design ensures reliable performance and a long service life

Просто безопасно

High level of safety when manoeuvring:
the slim design and compact cab concept ensure impressive manoeuvrability and the ability to navigate safely even in narrow aisles and small warehouses

Optimal visibility of the load wheels in every application scenario
thanks to the sideshift mast and integrated battery concept

Safe driving on all routes as standard
thanks to Curve Speed Control and the driving speed limitation function in main lift mode

Optimal work safety
thanks to smart safety features such as the STILL Safety Light, the non-slip step, panoramic rear-view mirrors and the optional armoured glass roof

Простая гибкость

The reach truck helps you to achieve smart space utilisation
at storage heights of up to 9 metres – even in narrow aisles

Flexible application options:
the compact cab and reduced working aisle width mean that the FXR 14C-16C can also work efficiently, quickly and safely in small warehouses and narrow aisles

Customised operator’s workstation settings
ensure maximum working comfort in every application

The perfect fit for every application
through the flexible configuration of the steering, with the choice of 190°, 360° or variably switchable

Простое соединение

Optional access protection
helps to ensure controlled use and protection against incorrect operation

Possible integration into material management systems
via MMS preparation

Uncomplicated and fast service analysis and parameterisation
of settings through the CAN bus interface

Литий-ионная технология STILL

Идеально настроенная система привода для снижения эксплуатационных расходов и повышения эксплуатационной готовности складской техники.

Подробнее о литий-ионной технологии STILL

Области применения

Easy operation

Easy and precise operation of all main functions without changing grip with the ergonomic Joystick 4Plus and intuitive menu navigation via the smart 4.3'' touch display.

Quick-charging access

The integrated lithium-ion battery and quick-charging access as standard ensure optimal availability.

Compact dimensions

Impressively manoeuvrable thanks to its compact working aisle width and small l2 dimension.

Flexibility through sideshift mast

The sideshift mast helps to ensure optimal visibility and, as a result, increased flexibility in the storage process. It reduces the number of hydraulic hoses in the mast.

All the important information at a glance

Scanners, terminals and screens can be attached to the optional item rail quickly and flexibly.

Height measurement

Precision made easy with mechanical lift height measurement. This enables smart assistance functions such as the end stroke limit and lift height display.
